P-732

HF direction finder P-732, Plath SFP 5000; manufactured by C. Plath GmbH, Hamburg.

The Plath SFP 5000 HF direction finder came into service for the EKF around 1976 and continued to be used for HF radio monitoring until around 2000. P-732: Plath SFP 5000

Technical data

Power supply

Dimensions

Accessories

  • Direction finding antenna: U-Adcock DF antenna Telefunken AK1200D

Equipment

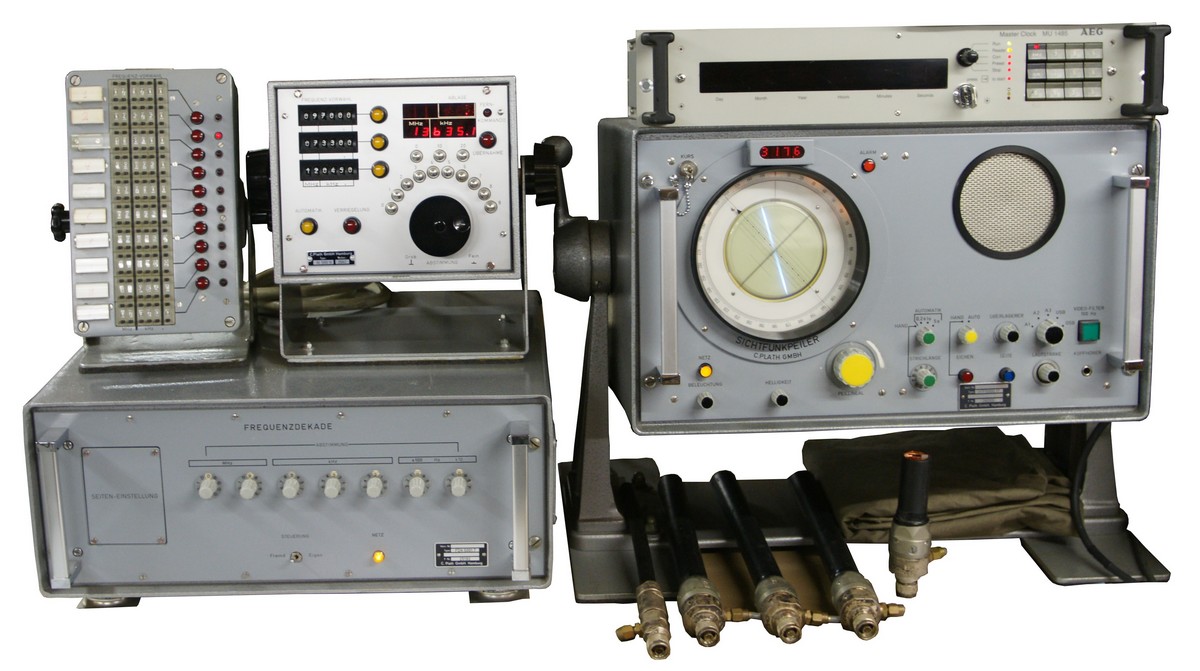

P-732: Sighting deviceThe P-732 / Plath SFP 5000 system consists of the Plath SFP 5000.17, the main component with receiver and visual bearing indicator using a round cathode ray tube DP 10/14. A round bearing dial is manually aligned with the maximum deflection on the bearing indicator and the bearing is output digitally.

For frequency selection, the frequency decade FDK 5001.7, the frequency selecting unit FWG 5000.1 and the tuning unit AG 5000.16 are required for the direction finding system. The tuning unit was later replaced by the control panel AG 5002.

This allows the frequency to be entered directly via a keypad or set in 100 Hz steps using the tuning knob. The display unit alone does not have a frequency input or tuning facility.

The 8/16-fold U-Adcock antenna AK1200D from Telefunken, whose inner base has a diameter of 8 m and an outer diameter of 36 m, is used as the direction finding antenna.

Technical principle

Tube assembly

Development

Deployment

The SFP 5000 HF direction finding system developed by Plath after 1969 was procured in 1976 for the EKF's electronic radio reconnaissance; it remained in service until 2000 and was liquidated in 2002.

Technical documentation

Further information
