T-108 Test set
Test set T-108; manufactured by Autophon AG, Solothurn.
The Autophon test set T-108 is used for maintenance and level measurements on the control units and the on-board communication systems which are part of the SE-407/SE-411 radio stations.
Technical data
- Principle: Measuring instrument (level measurements)
Power supply
Dimensions
Accessories
Operation

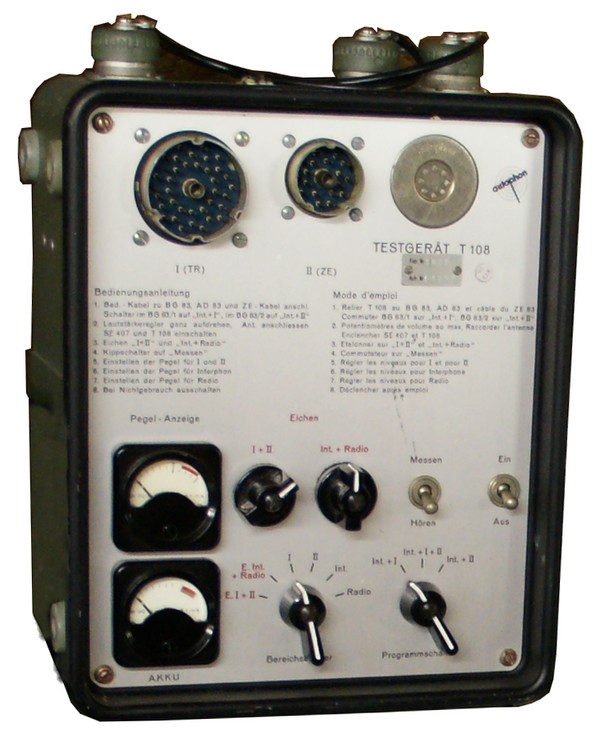

The T-108 test set is designed for level measurements on the on-board communication system and the control units of the SE-407/411 radios. The set is built into a typical Autophon metal cabinet.
Technical principle
The test set consists of a 1000 Hz tone generator and an AF voltmeter as well as different switches required for the measurements.
Components
The set is transistorised, it is equipped with two OC71 and three OC72 transistors.
Development
The T-108 was developed in 1959/60 to simplify AF level measurements on the SE-407/SE-411 system with its on-board communication systems.
